NetApp EF-Series all-flash arrays

Description

Enterprises of every size are finding that they must evolve and innovate to gain competitive advantage. Performance and availability of key business applications is tightly linked to time to market, revenue, and customer satisfaction, and enterprises want solutions that improve the speed and responsiveness of these applications.

At the same time, managing data keeps getting more complex and costly—especially with limited resources, space, and power. Cost-effectiveness of operations is just as important as operating without disruptions and delivering consistent performance. Organizations also want the ability to gain value and insights from their data that will differentiate them from competitors and speed time to market.

Key benefits Performance

  • Modular and flexible configuration options to support demanding performance and cost requirements
  • Industry-leading IOPS and ultralow latency to increase application responsiveness
  • NVMe delivers 2 times the performance of SAS-based all-flash arrays
  • Support for multiple high-speed host interfaces in 2U form factor

Value

  • Industry-leading price/performance for both IOPS and bandwidth
  • NVMe-oF and SCSI options provide investment protection to meet future demands without forklift upgrades

Simplicity

  • Simple, flexible online administration
  • Browser-based on-box GUI with guided configuration and recovery guru
  • SQL Server setup in under 6 minutes
  • Embedded REST APIs for easy integration
  • Worry-free reliability with over 1 million installations

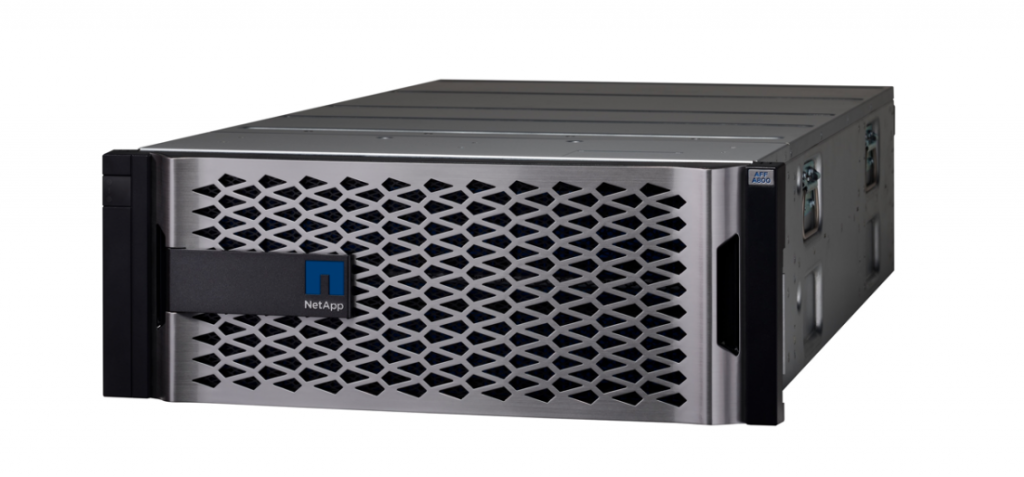

EF600

EF300

Maximum raw capacity in base controller enclosure

367TB (NVMe)

367TB (NVMe)

Maximum drives in base controller enclosure1

24 SSDs

24 SSDs

Maximum IOPS2

2,000,000 IOPS

670,000 IOPS

Maximum read bandwidth2

44GBps

20GBps

Maximum write bandwidth2

13GBps

7GBps

I/O interface options

200Gb NVMe/IB, NVMe/RoCE

100Gb NVMe/IB, NVMe/RoCE

200Gb iSER/IB

100Gb iSER/IB, SRP/IB

100Gb NVMe/IB, NVMe/RoCE

32 Gb NVMe/FC

100Gb iSER/IB, SRP/IB

32Gb FC

32 Gb NVMe/FC

25Gb iSCSI

32Gb FC



25Gb iSCSI



Expansion options

Up to 420 NL-SAS HDDs3 or

Up to 96 SAS SSDs

Up to 420 NL-SAS HDDs3 or

Up to 96 SAS SSDs

Maximum possible raw capacity with expansion

7.9PB or 1.8PB all-SSD

4.7PB or 1.8PB all-SSD
